Corrosión anti del tubo de fuego de la caldera del sobrecalentador del vapor de la estructura compacta de ASME
Product Details
| Tipo: | Tubo de aleta, tubo del cambiador de calor | Color: | Modificado para requisitos particulares |
|---|---|---|---|

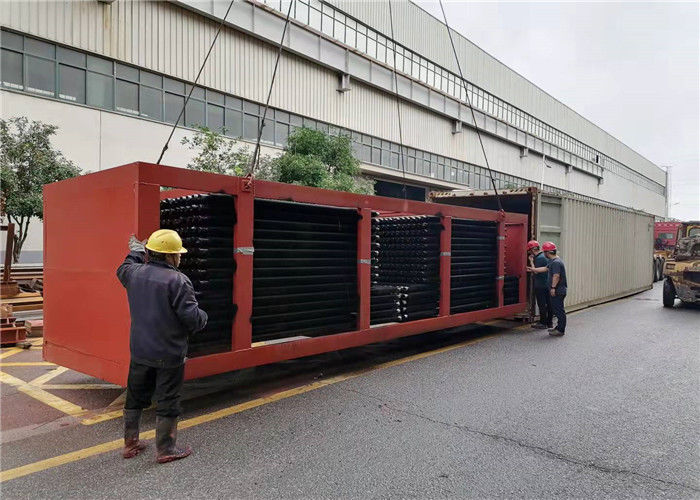

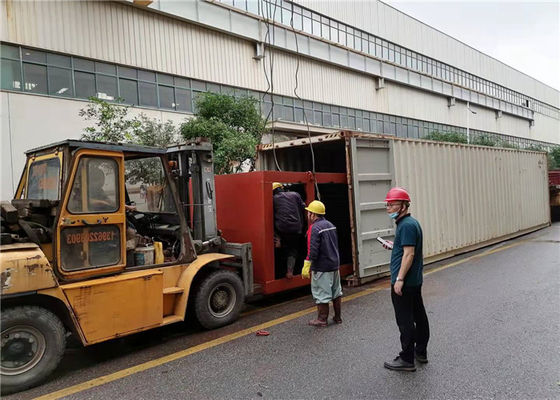

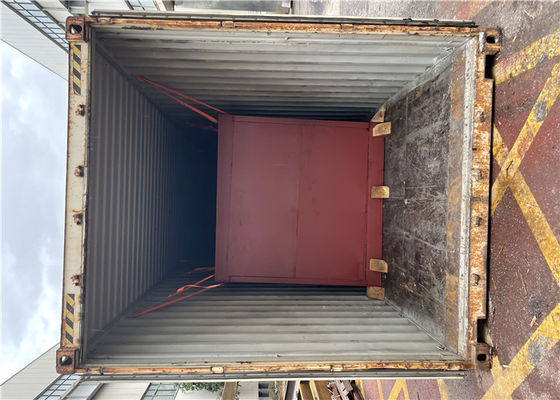

| Paquete: | Caso de madera con el marco de acero, en paquetes, el etc. | Puerto: | Shangai |
| Garantía: | 1 año | Eficacia de la transferencia de calor: | Eficacia alta |
| Resaltar |
Tubo de fuego de la caldera de vapor de ASME,Tubo de fuego compacto de la caldera de vapor,Tubos de sobrecalentador de la estructura compacta |
||
Product Description
ASME Certification Energy Saving Boiler Fin Tube Compact Structure Anti - Corrosion
Product Introduce
H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.
Product Description
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
| Product | H-fin Tube |
| Base Pipe | Welded or Seamless |
| Material | carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys. |
| Application | H economizer,H evaporator,H superheater,H air heater and etc. |
Advantages
1.Anti - corrosion
2.Anti-wear
3.Low contact resistance
4.High Stability
5.Ability to prevent accumulation of dust
Structure
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Parameters
| Item Code | D | D0 | d | δ | h | t | s | s1 | s2 | G | A | Ad | B |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/m | m2/m | m2/kg | / | |
| 1 | 54 | 32 | 26 | 3 | 10 | 6 | 2.4 | 1.5 | 3.3 | 7.505 | 0.6336 | 0.08442 | 6.3 |
| 2 | 54 | 32 | 25 | 3.5 | 10 | 6 | 2.4 | 1.5 | 3.3 | 7.848 | 0.6336 | 0.08073 | 6.3 |
| 3 | 54 | 32 | 24 | 4 | 10 | 6 | 2.4 | 1.5 | 3.3 | 8.158 | 0.6336 | 0.07766 | 6.3 |
| 4 | 56 | 32 | 26 | 3 | 12 | 9 | 2.5 | 1.6 | 3.4 | 6.305 | 0.4989 | 0.07913 | 4.96 |
| 5 | 56 | 32 | 25 | 3.5 | 12 | 9 | 2.5 | 1.6 | 3.4 | 6.635 | 0.4989 | 0.07519 | 4.96 |
| 6 | 56 | 32 | 24 | 4 | 12 | 9 | 2.5 | 1.6 | 3.4 | 6.951 | 0.4989 | 0.07177 | 4.96 |
| 7 | 62 | 38 | 31 | 3.5 | 12 | 9 | 2.7 | 1.8 | 3.6 | 8.102 | 0.5709 | 0.07046 | 4.78 |
| 8 | 62 | 38 | 30 | 4 | 12 | 9 | 2.7 | 1.8 | 3.6 | 8.497 | 0.5709 | 0.06719 | 4.78 |
| 9 | 62 | 38 | 31 | 3.5 | 12 | 11 | 2.7 | 1.8 | 3.6 | 7.173 | 0.4895 | 0.06824 | 4.1 |
| 10 | 62 | 38 | 30 | 4 | 12 | 11 | 2.7 | 1.8 | 3.6 | 7.566 | 0.4895 | 0.0647 | 4.1 |
| 11 | 62 | 38 | 31 | 3.5 | 12 | 13 | 2.7 | 1.8 | 3.6 | 6.548 | 0.4326 | 0.06606 | 3.62 |
| 12 | 62 | 38 | 30 | 4 | 12 | 13 | 2.7 | 1.8 | 3.6 | 6.939 | 0.4326 | 0.06234 | 3.62 |
| 13 | 66 | 42 | 34 | 4 | 12 | 9 | 2.8 | 1.8 | 3.6 | 9.51 | 0.6148 | 0.06466 | 4.66 |
| 14 | 66 | 42 | 33 | 4.5 | 12 | 9 | 2.8 | 1.8 | 3.6 | 9.945 | 0.6148 | 0.06182 | 4.66 |
| 15 | 66 | 42 | 34 | 4 | 12 | 11 | 2.8 | 1.8 | 3.6 | 8.477 | 0.5278 | 0.06226 | 4 |
| 16 | 66 | 42 | 33 | 4.5 | 12 | 11 | 2.8 | 1.8 | 3.6 | 8.908 | 0.5278 | 0.05925 | 4 |
| 17 | 66 | 42 | 34 | 4 | 12 | 13 | 2.8 | 1.8 | 3.6 | 7.761 | 0.4669 | 0.06016 | 3.54 |
| 18 | 66 | 42 | 33 | 4.5 | 12 | 13 | 2.8 | 1.8 | 3.6 | 8.191 | 0.4669 | 0.057 | 3.54 |
