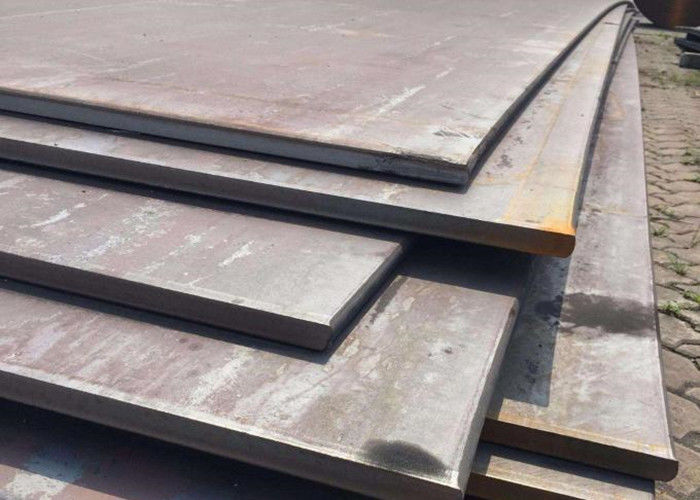

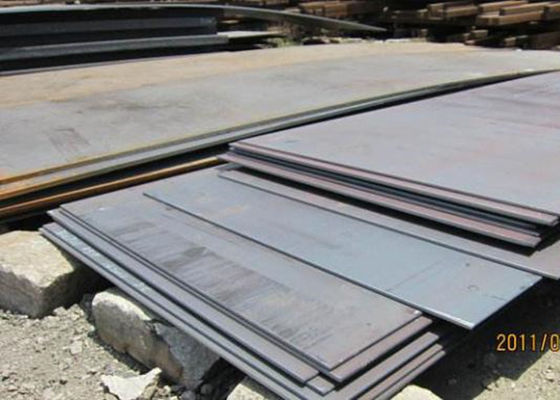

Placa de acero laminada en caliente SAE 1045 4 - 120m m CK 45 para las piezas de maquinaria generales
Product Details
| Superficie: | Placa de acero laminada en caliente de carbono | Material: | SAE 1045 |
|---|---|---|---|
| Grueso: | 5mm-600m m | Anchura: | 200mm-2500m m |
| Peso del paquete: | 3MT-6MT | Longitud: | 100m m a 12000m m |
| Resaltar |
astm a36 de la placa,placa en frío |
||
Product Description
El SAE laminado en caliente 1045 4-120m m CK 45 carben la placa de acero para las piezas de maquinaria generales, explotación minera, refinería
Tamaños
Grueso: 5-600m m
Anchura: 200-2500m m
Longitud: 1 00-12000m m
Uso
- Acero de carbono AISI 1045 usado para hacer el dado-tablero, piezas de maquinaria generales.
- Las piezas para los vehículos, los ejes, los bujes, los cigüeñales, las varillas y las piezas para el sector de la construcción de la máquina y el acero para las hachas, cuchillos, martillan el etc.
Grado equivalente
| GB | Estruendo | N-F | SS | JIS | BS | AISI | ISO |
| 45# | 1,0503 | C45 | 1650 | S45C | IC45/080A47 | 1045 | C45E4 |
Análisis químico
| NO. | C | Manganeso | Si | Cr | Cu | Ni | P | S | ||||||||
| Aisi 1045 | 0.43~0.50 | 0.6~0.9 | 0.10~0.60 | ≤0.40 | ≤ 0,50 | |||||||||||
| DIN1.0503 | 0.42~0.48 | 0.6~0.9 | 0.15~0.35 | ≤0.15 | ≤0.3 | ≤0.2 | ||||||||||
| JIS S45C | 0.42~0.50 | 0.5~0.8 | ≤0.40 | ≤0.40 | ≤ 0,4 | |||||||||||
| GB45 | 0.42~0.50 | 0.5~0.8 | 0.17~0.37 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||||||||
Propiedades mecánicas
| Recocido | El forjar | Temple y endurecimiento | Normalización | |||||||||||||
|
Recocido subcrítico: 650~700 Recocido isotérmico: 820~860 |
1100~850 |
Temple: 550~660 Endurecimiento: agua 820~860 |
840~880 | |||||||||||||
Tratamiento térmico
Recocido suave: el calor a 550-650°C, se refresca lentamente.
Dureza después de recocer: Máximo 269HB
Endurecimiento: °C 820 - 870
Normalización de temperatura: 840-870°C
Product Highlights
El SAE laminado en caliente 1045 4-120m m CK 45 carben la placa de acero para las piezas de maquinaria generales, explotación minera, refinería Tamaños Grueso: 5-600m m Anchura: 200-2500m m Longitud: 1 00-12000m m Uso - Acero de carbono AISI 1045 usado para hacer el dado-tablero, piezas de ...
