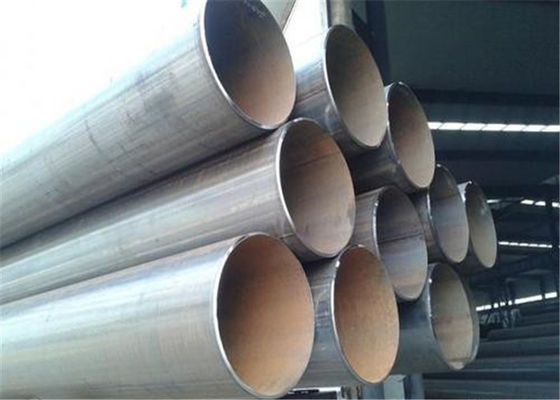

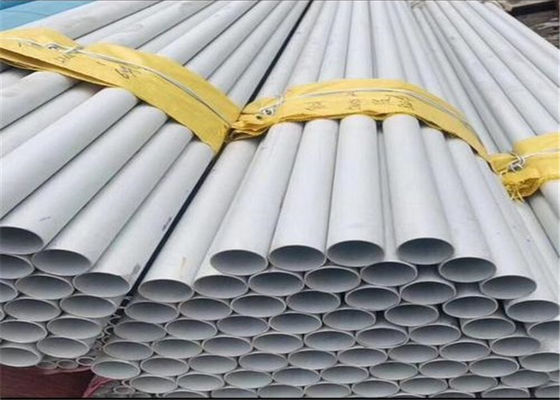

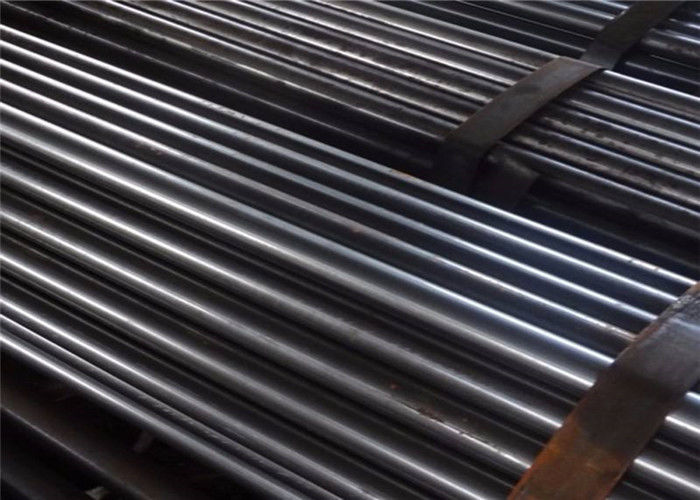

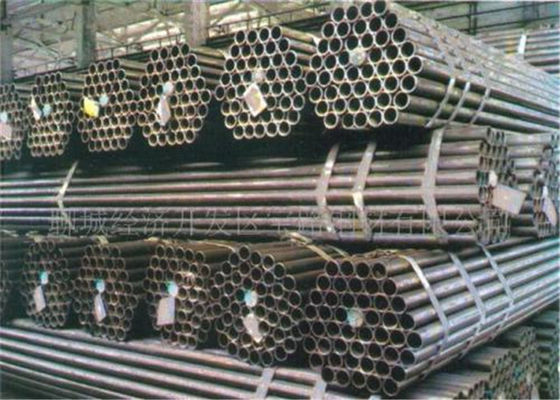

Tubo de caldera de acero inoxidable de conserva en vinagre de soldadura para el cambiador de calor
Product Details
| Grado de acero: | T1 DE ASME SA213, T11, T12, T2, T22, T23, T5, T9, T91, T92 | Superficie: | Anneal&Pickling |
|---|---|---|---|
| Uso: | cambiador del boiler&heat, energía, producto petroquímico, explotación minera, comida, papel, gas e | Inspección de los terceros: | BV, SGS |
| Material: | Acero de carbono, acero inoxidable | Puerto: | Shangai |
| Resaltar |
Tubo de caldera de acero inoxidable de conserva en vinagre,Tubo de caldera de conserva en vinagre del cambiador de calor,Tubo de caldera de acero inoxidable de ASTM A269 |
||
Product Description
Tubería rodante de acero inoxidable de soldadura del tubo de caldera para el cambiador de calor
Introducción de la producción
Tubería de acero ferrítica inconsútil de la aleación de ASTM A335 para la temperatura alta
| Propiedades mecánicas | ||||||
| Grado | Resistencia a la tensión (MPa) | Fuerza de producción (MPa) | Alargamiento (%) | Energía del impacto (J) | Dureza | |
| P11 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P12 | ≥ 415 | ≥ 220 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P22 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P5 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 187HB | |
| P91 | 585~760 | ≥ 415 | ≥ 20 | ≥ 35 | ≤ 250HB | |
| P92 | ≥ 620 | ≥ 440 | ≥ 20 | ≥ 35 | 250HB | |
OTROS materiales:
ASTM A199 T9, T11, T22
T1 DE ASTM A209, T1A, T1B
ASTM A210 C
T1 DE ASTM A250
ASTM A369 FP1, FP2, FP12, FP22, FP9
FP5 DE ASTM A389
JIS G3455 STS49
JIS 3456 STPT49
JIS G3458 STPA12, STPA 22, STPA23, STPA24, STPA25, STPA26
JIS G3462 STBA12, 13, STBA20, STBA22, STBA23, STBA24, STBA25, STBA26
JIS G3464 STBL39
SEW610 10CrMo910
Estruendo 1629 St52.4, St52
Estruendo 17175 15Mo3, 13CrMo44, 12CrMo195
GB9948 16Mn, 15MnV, 16Mo, 12CrMo, 15CrMo, 12Cr1MOV, Cr2Mo, 10MoWVNB, Cr5Mo, Cr9Mo,
GB/T8162/8163 Q345, 20Cr, 40Cr, 20CrMo, 25CrMo, 30CrMo, 35CrMo, 34Mn2V, 42CrMo, WB36
(15NICUMOB5) y 12Cr2MoWVTiB (R102)
GB5310 12CrMoG, 15CrMoG, 12Cr1MoVG
GB/T 17396 27SiMn
GB18248 37Mn, 34Mn2V, 35CrMn, 34CrMo4
Tipo: Inconsútil y soldado con autógena
Tamaño:
Diámetro externo: 6mm~1420m m
Grueso de pared: 1mm~60m m
Longitud: el 12m, el 11.8m, los 6m, los 5.8m o como requisito. Máximo: 25m.pc
