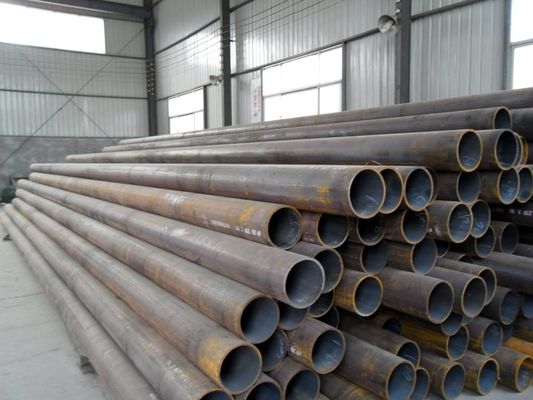

Las costillas de acero del tubo 4 de la caldera DIN17175 roscan resistencia a la corrosión
Product Details
| Nombre de producto: | Tubo de caldera inconsútil de acero de carbono | Uso: | Para la caldera de presión alta, media, baja y el propósito de la presión |
|---|---|---|---|
| Estándar: | DIN17175 | Material: | ST35.8 |
| Resaltar |
Tubo de acero de la caldera DIN17175,4 costillas roscan el tubo de acero de la caldera,DIN17175 roscó el tubo del hilo |
||
Product Description
Tubería de acero inconsútil de alta presión del carbono del St 37,8 del tubo de caldera del acero de carbono
Estándar de producción: GB/T20409-2006
SteelGrade: 20G, 20MNG, 25MNG, 12CRMOG, 15CRMOG, SA210A1, SA210C, SA213T2/T12, WB36, T91, T11,
P11, P22, P92, P5, P9, R102, CR5MO, 16MO3,12CR2MOWVTIB
Los hilos numeran: 4ribs/6ribs/8ribs/12ribs
El tubo rayado de la caldera de alta presión interna del hilo es una clase de procesos del endophragm la línea espiral la tubería de acero inconsútil. Uso principal adentro en la pared de la refrigeración por agua de la caldera para uso general de la capacidad. Generalmente con el tubo fluorescente que las aplicaciones comparan, puede mantener la condición nuclear de la ebullición bajo condición de funcionamiento de la carga de la alta fiebre, evita así enviar la ebullición de filmación de la condición, previene el tubo para quemar, alarga la vida de servicio del tubo.
Parámetros de Chemical&Mechanical
| Grado | C | Manganeso | Si | Cr | MES | S | P |
| 20G | 0.17~0.23 | 0.35~0.65 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 20MnG | 0.17~0.23 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 25MnG | 0.22~0.29 | 0.70~1.00 | 0.17~0.37 | --- | --- | ≤0.020 | ≤0.025 |
| 12CrMoG | 0.08~0.15 | 0.40~0.70 | 0.17~0.37 | 0.40~0.70 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| 15CrMoG | 0.12~0.18 | 0.40~0.70 | 0.17~0.37 | 0.80~1.10 | 0.40~0.55 | ≤0.020 | ≤0.025 |
| SA-210A1 | ≤0.27 | ≤0.93 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-210C | ≤0.35 | 0.29~1.06 | ≥0.10 | --- | --- | ≤0.035 | ≤0.035 |
| SA-213T2 | 0.10~0.20 | 0.30~0.61 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| SA-213T12 | 0.05~0.15 | 0.30~0.61 | ≤0.50 | 0.80~1.25 | 0.44~0.65 | ≤0.025 | ≤0.025 |
| Grado | T (MPa) | Y (MPa) | E (%) | Dureza |
| 20G | 410~550 | 245 | ≥24 | --- |
| 20MnG | ≥415 | ≥240 | ≥22 | --- |
| 25MnG | ≥485 | ≥275 | ≥20 | --- |
| 12CrMoG | 410~560 | ≥205 | ≥21 | --- |
| 15CrMoG | 440~640 | ≥235 | ≥21 | --- |
| SA-210C | ≥415 | ≥255 | ≥30 | ≤143HBW |
| SA-210A1 | ≥485 | ≥275 | ≥30 | ≤179HBW |
| SA-213T2 | ≥415 | ≥205 | ≥30 | ≤163HBW |
| SA-213T12 | ≥415 | ≥220 | ≥30 | ≤163HBW |
| Tamaños del tubo para los cambiadores de calor y condensadores y caldera | |||||||||||
| Diámetro exterior | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Grueso de pared milímetro | |||||||||||
| 0,508 | 0,71 | 0,89 | 1,24 | 1,65 | 2,11 | 2,77 | 3,40 | ||||
| milímetro | pulgada | Peso kg/m | |||||||||
| 6,35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||||
| 9,53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||||
| 12,7 | el 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||||
| 15,88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||||
| 19,05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1,236 | ||||
| 25,4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1,234 | 1,574 | 2,05 | |||
| 31,75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1,244 | 1,574 | 2,014 | 2,641 | |||
| 38,1 | 1 1/2 | 0,667 | 0,832 | 1,144 | 1,514 | 1,904 | 2,454 | 3,233 | |||
| 44,5 | 1 3/4 | 1,342 | 1,774 | 2,244 | 2,894 | 3,5 | |||||
| 50,8 | 2 | 1,549 | 2,034 | 2,574 | 3,334 | 4,03 | |||||
| 63,5 | 2 1/2 | 1,949 | 2,554 | 3,244 | 4,214 | 5,13 | |||||
| 76,2 | 3 | 2,345 | 3,084 | 3,914 | 5,094 | 6,19 | |||||
| 88,9 | 3 1/2 | 2,729 | 3,609 | 4,584 | 5,974 | 7,27 | |||||
| 101,6 | 4 | 4,134 | 5,254 | 6,854 | 8,35 | ||||||
| 114,3 | 4 1/2 | 4,654 | 5,924 | 7,734 | 9,43 | ||||||
| Forma de tubo: Recto y curva en U y aletado y en espiral | |||||||||||
| Tubo de acero inoxidable: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. | |||||||||||
| Tubo de acero &Alloy del carbono: A/SA178, A/SA179, A/SA192, A/SA209, A/SA210, A/SA213, A.SA214 |
|||||||||||
