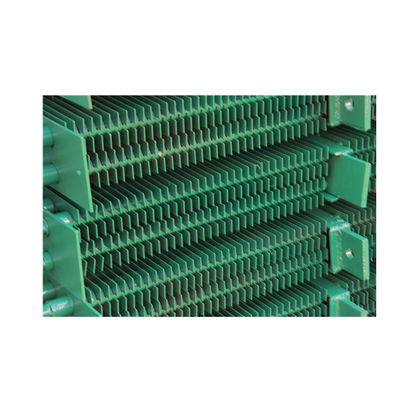

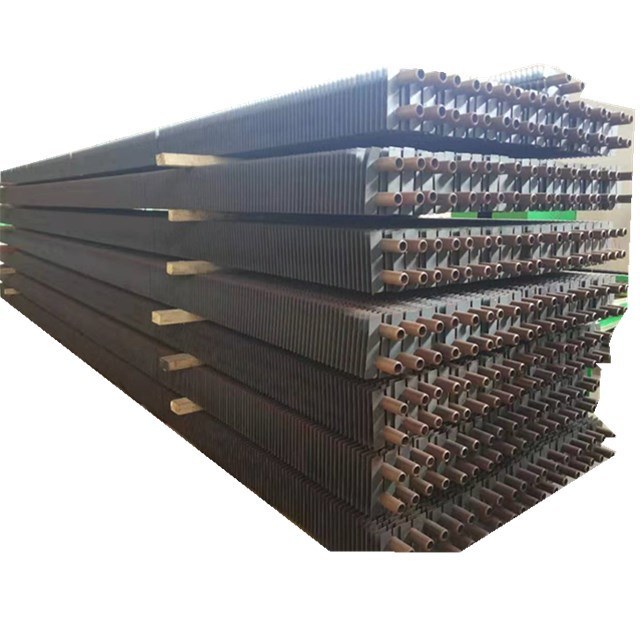

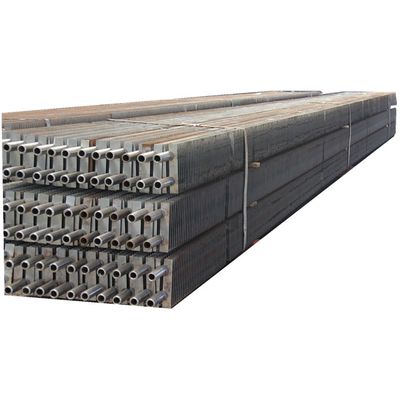

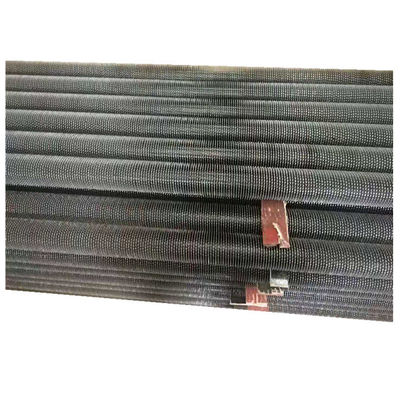

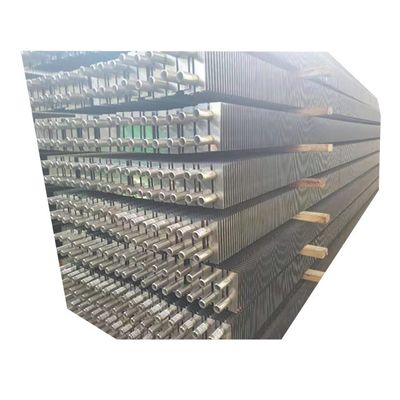

Name: High Frequency Welding Boiler Fin Tube for Central Heating HD Boiler with Corrosion Resistant Finish
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
Price: 4.00 USD
Availability: InStock

Inicio Productos Tubo de aleta de la caldera

High Frequency Welding Boiler Fin Tube for Central Heating HD Boiler with Corrosion Resistant Finish

Datos del producto:

Lugar de origen:	Zhangjiagang, China
Nombre de la marca:	HDB Boiler
Certificación:	ISO9001,ASME, EN,CE

Pago y Envío Términos:

Cantidad de orden mínima:	30
Precio:	$4,400-4,500

Contacto

Descripción detallada del producto

Peso:	5 000 kg	Sobredosis del tubo base.:	25.4 mm ~ 1600 mm
Espesor del tubo base:	2.5 mm ~ 40 mm	Altura de la aleta:	0.5 mm ~ 20.0 mm
Grosor de la aleta:	0.5 mm ~ 3.0 mm	Tono de aleta:	5mm ~ 25,4mm
Material:	Acero al carbono, acero aleado, acero inoxidable	Length:	0
Tipo de tubería base:	soldado con autógena o inconsútil	Tipo de presión:	Bajo/de alta presión
Tratamiento superficial:	Pintado	Eficiencia de transferencia de calor:	Alto
Propiedades de autolimpieza:	Superior	Resistencia a gases de combustión:	Diseñado para un espacio pequeño
Tipo de aleta:	Tubo con aletas tipo H
Resaltar:	Central Heating Boiler Fin Tube , HD Boiler Fin Tube , Corrosion Resistant Fin Tube

Heat Exchanger High Frequency Welding Boiler Fin Tube Radiators Central Heating HD Boiler

Product Overview

Central heating radiator with high-frequency welded fin tubes for efficient heat transfer in boiler systems.

Product Features

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width.

Design Advantages

H-type finned tubes have been widely used in boilers and waste heat recovery due to their unique groove structure on the fin surface, which provides excellent anti-wear and anti-fouling performance. Our products can be customized according to specific requirements.

Technical Specifications

Item	Range
Base Tube O.D (mm)	25.4 mm ~1600mm
Base Tube Thickness (mm)	2.5 mm ~40 mm
Fin Height (mm)	0.5 mm ~20.0 mm
Fin Thickness (mm)	0.5 mm ~3.0 mm
Fin Pitch (mm)	5 mm ~ 25.4 mm
Material	Carbon Steel, Alloy Steel, Stainless Steel
Length	0<L≤ 12000

Product	H-fin Tube
Base Pipe	Welded or Seamless
Material	Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys
Application	H economizer, H evaporator, H superheater, H air heater and etc.
